JYL08 ENEC CE AC100-240V IP66 60W 100W 150W 200W die casting aluminum SMD LED street light

MOQ ：100 piece

Lead Time ：30 Days

Inquiry Start Order

Seller Support : Trade Authenticity Guaranteed & Accepting

Payment : L/C，T/T，Western Union, Money Gram, Credit Card, Paypal

Product details

Supply Ability

Supply Ability：10000 piecesWarranty(Year)：5 Year

Packaging & Delivery

Length：72 cmWidth：35 cm
Height：15 cmLogistics Weight：7.000 kg/piece

Product Specifications

Brand name：JINYUAN
lighting：5
Brand name：JINYUAN
Beam angle：150*90，150*70
Input Voltage：AC100-277V
CCT：2700K-6500K

Product Description

产品图（提交的照片需清晰，不超过 500K；可添加正面图、侧面图、尺寸图、使用效果图、安装示意图、配光曲线图等）；
参数表（包含尺寸、重量以及属性参数）；
物流包装信息（如包装尺寸、数量）；
认证图；
工厂图片。

*JYL08 Series is our new generation of light, designed with high light efficiency leds and low light decay, combined with the latest management and smart lighting control system.

*JYL08 Series Street Light can be equipped with 0-10V, 1-10V, DALI, DALI2 D4i LED driver, perfect work with 3PIN, 5PIN or 7PIN NEMA socket and ZHAGA socket to fit the ZIGBEE, LORA or Motion/PIR to achieve remote smart control by software or App in future.

*Full range from 10W-200W with 4 sizes design. It is a great solution for roadway, residential areas, pedestrian walkways, large logistical centers and parking lots.

Product features:
? Patented technology, integrated structure design
? Excellent thermal conductivity and large heat exchange
? Using 5050 EMC bracket with high thermal conductivity

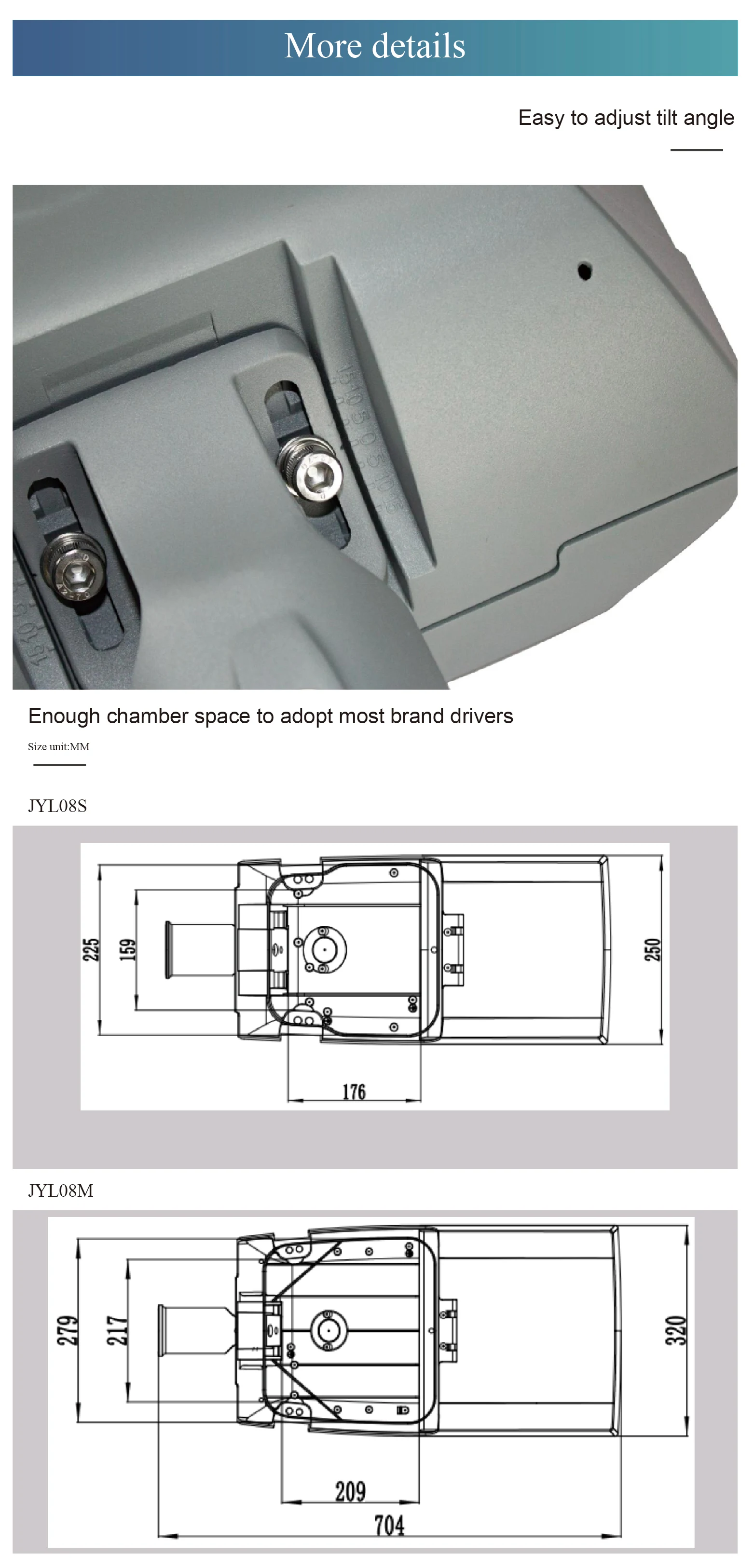

? Vertical or horizontal installation ,-15° to +15° angle adjustable
? Human efficacy light distribution

JYL08 .jpg

Model	JYL08-60	JYL08-80	JYL08-100	JYL08-120
Power	60W	80W	100W	120W
Ligth efficiency	140-190Lm/W	140-190Lm/W	140-180Lm/W	140-180Lm/W
Total flux	8400-11400lm	11200-15200lm	14000-18000lm	16800-21600lm
CCT	2700K /3000K / 4000K / 5000K / 5700K / 6500K
CRI	≥Ra70
LED chips	5050
Beam angle	15090°/15070°
IP	IP66
Voltage	AC100-277V,50/60HZ
Work environment	-30℃~45℃,10%~90% RH
Driver efficiency	≥88%
PF	≥0.95
LED life	>100000H
Housing material	Die casting aluminum
Pipe diameter	60mm
Lamp size(mm)	589250117
Packing size(mm)	605290180
Net weight(kg)	4
Gross weight(kg)	4.6

Model	JYL08-120	JYL08-150	JYL08-180	JYL08-200
Power	120W	150W	180W	200W
Ligth efficiency	140-180Lm/W	140-180Lm/W	140-180Lm/W	140-180Lm/W
Total flux	16800-21600lm	16800-21600lm	16800-21600lm	16800-21600lm
CCT	2700K /3000K / 4000K / 5000K / 5700K / 6500K
CRI	≥Ra70
LED chips	5050
Beam angle	15090°/15070°
IP	IP66
Voltage	AC100-277V,50/60HZ
Work environment	-30℃~45℃,10%~90% RH
Driver efficiency	≥88%
PF	≥0.95
LED life	>100000H
Housing material	Die casting aluminum
Pipe diameter	60mm
Lamp size(mm)	704320117
Packing size(mm)	720350150
Net weight(kg)	6.5
Gross weight(kg)	7

We welcome you to purchase our superior line of led outdoor streetlights, flood lights, LED modules,path lights, wall washer lights, garden lights which are all crafted for professional results.
Pls contact us directly for OEM/ODM business of lighting.
